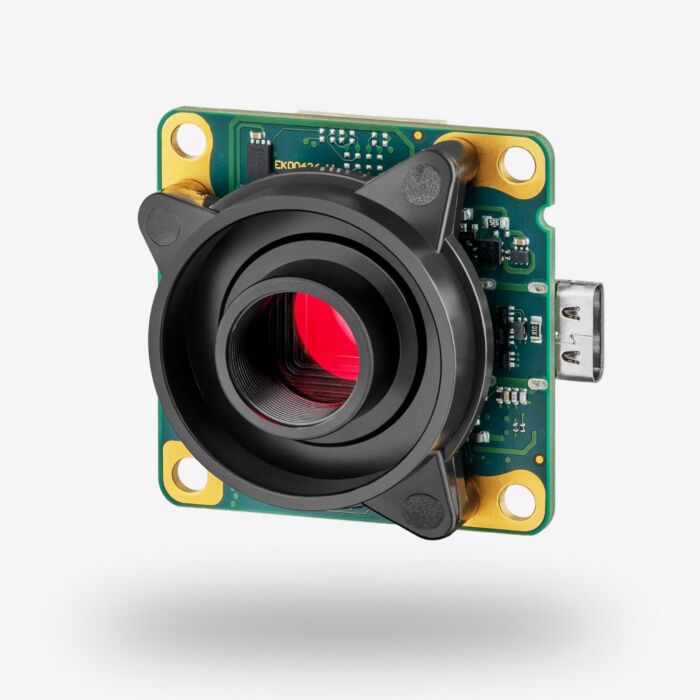

IDS Imaging U3-3681XLE-C-NO Rev.1.1 USB3 Single-Board Camera With S-Mount Lens

The industrial camera U3-3681XLE with SuperSpeed USB 5 Gbps is equipped with the versatile 1/2.5" 5.04 MPix CMOS sensor onsemi AR0521 (2592 x 1944 px px, pixel size 2.2 µm, 48.0 fps)
SKU
U3-3681XLE-C-NO Rev.1.1

 It is ideally suited for applications with poor or changing lighting conditions, such as outdoor use in the ITS area. However, the camera also delivers high-resolution data for detailed image evaluation in typical industrial applications, such as surface inspections. Thanks to its compact dimensions and USB Type-C connector, it can be easily integrated into any image processing system.

Due to its features the rolling shutter sensor is also a cost-effective replacement for camera models with the proven 5 MPixel sensors onsemi MT9P006 and MT9P031.

With superior low-light performance due to the BSI pixel technology ("Back Side Illumination"), the AR0521 sensor excels additionally with lower power consumption, better sensitivity in low light conditions and in the NIR range, as well as less noise.

The compact USB3 camera is available either with a plastic housing with C/CS-mount and adjustable back focal length or as a board-level version with or without C/CS-mount or S-mount.

The U3-3681XLE USB3 single-board camera with S-Mount lens holder is available as color or monochrome version.

Like all other camera models of the uEye XLE family, the U3-3681XLE is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.

Also available as a variant for specific performance requirements in the near infrared range (NIR) of the spectrum, i.e. above 750nm wavelength.

Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • USB Type-C connector
  • 3 years warranty


Applications:

  • Agricultural Applications
  • Traffic and Transport (ITS)
  • Metrology
  • Small Device Construction
Part # U3-3681XLE-C-NO Rev.1.1: 1007700
Shutter Rolling Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 5 MP
Resolution 5.04 Mpix
Resolution (H x V) 2592 x 1944 Pixel
Aspect Ratio 4:3
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/2.5"
Optical Size 5.702 mm x 4.277 mm
Optical Sensor Diagonal 7.13 mm (1/2.24")
Pixel Size 2.2 µm
Manufacturing Onsemi
Sensor Model AR0521SR2C09SURA0
Gain (master/RGB) 15x/8x
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 48 / 12
AOI Image Height / Step Width 4 / 2
AOI Position Grid (Horizontal/Vertical) 8 / 2
Binning Horizontal Same Frame Rate
Binning Vertical Increased Frame Rate
Binning Method Color
Binning Factor 2
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Increased Frame Rate
Subsampling Method Color
Subsampling Factor 2, 4
