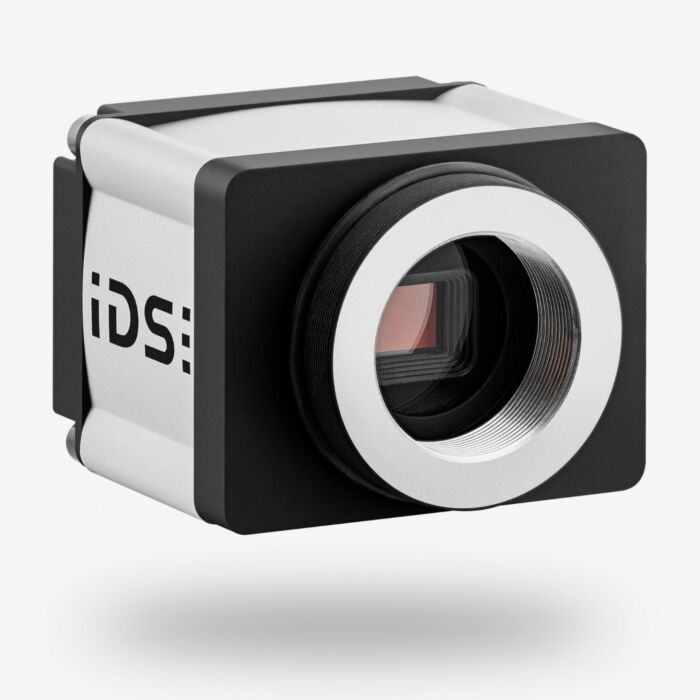

IDS Imaging GV-5040FA-M-GL Rev.1.2 GigE IP65/67 Monochrome Industrial Cameras
For excellent image quality even in low light scenarios or when the camera should take pictures of fast-moving objects: The IMX273 global shutter CMOS sensor from Sony's Pregius series is characterized by its sensitivity and high dynamic range.
SKU
GV-5040FA-M-GL Rev.1.2
The resolution of the sensor is 1.58 MPix (1456 x 1088 px pixels) with a pixel size of 3.45 µm, its frame rate is 78.0 fps.
The GV-5040FA Rev.1.2 (protection code IP65/67) can thus be used, for example, in safety technology for detailed evaluations in the area of quality assurance or for traffic monitoring and license plate recognition.
Features:
- 100% quality tested
- Plug & Play
- uEye+ software support
-
GigE Vision standard
-
GigE Interface
- CMOS Sensor
- C Lens Mount
- Protection Code IP65/67
- Power-Over-Ethernet
- Colour Correction in Camera
- Integrated image memory with 128 MB
- 3 years warranty
Applications:
- Machine Vision
- Metrology
- Surface Inspection
- Factory / Process Automation
- Logistics
- Sports and Motion Analysis
- Endless Web Inspection
| Part # | GV-5040FA-M-GL Rev.1.2: AB12692 | |
| Shutter | Global Shutter | |
| Sensor Characteristic | Linear | |
| Readout Mode | Progressive Scan | |
| Pixel Class | 1.6 MP | |
| Resolution | 1.58 Mpix | |
| Resolution (H x V) | 1456 x 1088 Pixel | |
| Aspect Ratio | 4:3 | |
| ADC | 12 bit | |
| Color Depth (Camera) | 12 bit | |
| Optical Sensor Class | 1/3" | |
| Optical Size | 5.023 mm x 3.754 mm) | |
| Optical Sensor Diagonal | 6.27 mm (1/2.55") | |
| Pixel Size | 3.45 µm | |
| Manufacturing | Sony | |
| Sensor Model | IMX273LLR-C | |
| Gain (master/RGB) | 24x/4x | |
| AOI Horizontal | Same Frame Rate | |
| AOI Vertical | Increased Frame Rate | |
| AOI Image Width / Step Width | 264 / 8 | |
| AOI Image Height / Step Width | 1 / 1 | |
| AOI Position Grid (Horizontal/Vertical) | 8 / 1 | |
| Binning Horizontal | Increased Frame Rate | |
| Binning Vertical | Increased Frame Rate | |
| Binning Method | M/C Automatic | |
| Binning Factor | 2 / 4 / 8 | |
| Subsampling Horizontal | Same Frame Rate | |
| Subsampling Vertical | Same Frame Rate | |
| Subsampling Method | M/C automatic | |
| Subsampling Factor | 2, 4, 8 | |
