CyberOptics Imagenation PX610 Precision Video Frame Grabber

*Product is discontinued please call for replacement options

A total solution for many PCI bus applications. The PX610 offers full support for non-interlaced video from progressive scan cameras, which eliminates blur seen in images of fast-moving objects captured by standard CCD cameras.

$0.00 Please call for pricing

SKU

PX610A-00 PX610A-20 PX610A-25

Overview

A total solution for many PCI bus applications. The PX610 offers full support for non-interlaced video from progressive scan cameras, which eliminates blur seen in images of fast-moving objects captured by standard CCD cameras.

In addition to non-interlaced video, the PX610 supports standard RS-170/CCIR video and resettable cameras. Acting as a bus master, it handles data transfers while the main CPU is free to run other parts of your application or other applications. Image data can be transferred to a buffer in main memory or directly to another PCI device.

Features:

Sampling jitter Maximum of ± 3 ns relative to horizontal synchronization

Software programmable look up tables (LUTs) 256 byte input LUT

External trigger Input pulled by 10k ohm to 5 V, trigger requires a TTL pulse of 100 ns (minimum); software programmable edge or level sensitivity; software programmable polarity

Strobe output Two TTL outputs with independently programmable pulse widths and polarities to control resettable cameras, exposure time, strobe lights, etc.

Video noise - < 0.8 LSB (least significant bit)

Video Multiplexer Four video inputs which can be a mix of RS-170 and CCIR

Camera gen-locking Horizontal and vertical drive outputs to gen-lock camera with a frame grabber

Resettable camera support With high precision digital synchronization

Vertical and horizontal cropping and scaling Minimize memory and bus bandwidth requirements

Programmable offset and gain

Standard Product FCC verification and CE marked

Software and manual included

Specifications

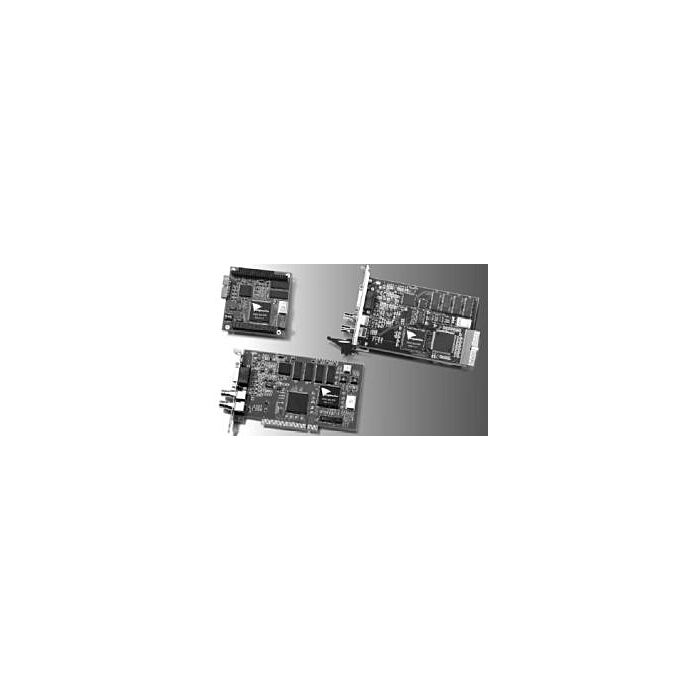

Bus	PCI bus master design for real-time image capture. PCI short card, PC/104-Plus core module and CompactPCI 3U size card
Input composite video format	Monochrome, RS-170 (NTSC) or CCIR (PAL) autodetect
Input video	1 V peak to peak, 75W
Resolution	RS-170: 640 x 480 pixels (maximum: 768 x 486 pixels); CCIR: 768 x 576 pixels; 256 gray levels, 8 bits
Power	- + 5 VDC, PCI, 850 mA; PC/ 104-Plus and CompactPCI, 650 mA
Camera Power	+ 12 VDC output
Supported Operating systems	DOS, Win 3.1, Win 95 / 98 / ME, Win NT / 2000
Supported Languages	C / C++, Visual Basic
