CBC-Computar V7531-MPZ-R 75mm Ruggedized Machine Vision Lens, 20MP, 1" Format, F3.1, C-Mount

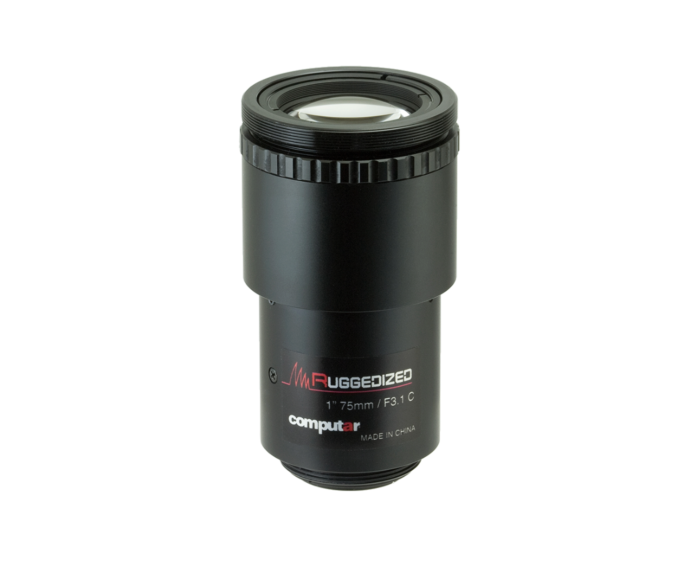

Computar V7531-MPZ-R 75mm Ruggedized Machine Vision Lens

The Computar V7531-MPZ-R is a 75mm ruggedized machine vision lens designed for high-resolution 20 megapixel imaging on 1" format sensors. Built for demanding industrial vision environments, this C-mount lens combines long focal length imaging, high-resolution optical performance, ultra-low distortion, and rugged mechanical durability for factory automation, inspection, robotics, traffic monitoring, surveillance, and other machine vision applications.

The V7531-MPZ-R features a fixed F3.1 iris, 75mm focal length, and 2.4µm pixel compatibility, making it a strong option for modern high-density industrial image sensors. The 75mm focal length is well suited for applications requiring a narrow field of view, longer working distance, or detailed imaging of smaller target areas while maintaining high image clarity and inspection accuracy.

Engineered as part of Computar’s MPZ-R ruggedized lens series, the V7531MPZR is built to withstand anti-vibration levels up to 10G and anti-shock levels up to 15G. This ruggedized construction helps maintain optical stability and image consistency in harsh environments where cameras and lenses may be exposed to vibration, motion, impact, or continuous equipment operation.

The floating focus design supports excellent image quality from minimum object distance to infinity, while the ultra-low distortion optics help improve measurement accuracy, alignment reliability, and edge-to-edge image performance. The fixed iris design can also be customized to a desired F-number, giving machine vision integrators added flexibility when optimizing exposure, depth of field, and optical performance for specific inspection requirements.

Key Features:

• 75mm focal length for long working distance machine vision and inspection
• Supports 20 megapixel resolution for high-detail image capture
• Designed for 1" format sensors
• C-mount lens for industrial camera integration
• F3.1 fixed iris design
• Customizable fixed iris available to your desired F-number
• Ruggedized construction for harsh machine vision environments
• Anti-vibration resistant up to 10G
• Anti-shock resistant up to 15G
• 2.4µm pixel compatible high-resolution optical design
• Ultra-low distortion for accurate inspection, alignment, and measurement
• Floating focus design provides excellent image quality from MOD to infinity
• Minimum object distance of 0.1m
• Compact and lightweight design for machine vision systems
• Available in small quantities
• Available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths

Applications:

• Factory automation and industrial inspection
• Long working distance machine vision systems
• Machine vision measurement and alignment
• Robotics and embedded vision systems
• Automated quality control
• Traffic monitoring and intelligent transportation systems
• Security and surveillance imaging
• High-resolution area scan camera systems
• Harsh-environment vision systems
• OEM vision equipment and industrial camera integration

The Computar V7531-MPZ-R belongs to a ruggedized lens family available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths, giving machine vision integrators multiple options for matching field of view, working distance, sensor size, depth of field, and inspection requirements.
