CBC-Computar V5024-MPZ-R 50mm Ruggedized Machine Vision Lens, 20MP, 1" Format, F2.4, C-Mount

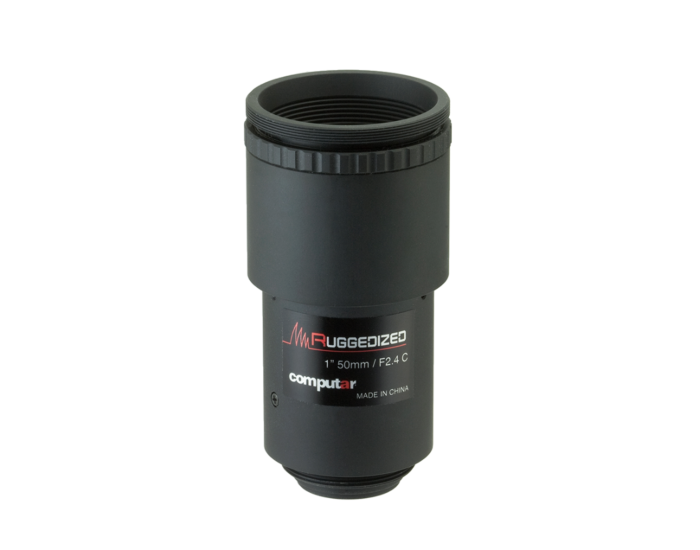

Computar V5024-MPZ-R 50mm Ruggedized Machine Vision Lens

The Computar V5024-MPZ-R is a 50mm ruggedized machine vision lens designed for high-resolution 20 megapixel imaging on 1" format sensors. Built for demanding industrial vision environments, this C-mount lens combines long focal length imaging, high-resolution optical performance, ultra-low distortion, and rugged mechanical durability for factory automation, inspection, robotics, traffic monitoring, surveillance, and other machine vision applications.

The V5024-MPZ-R features a fixed F2.4 iris, 50mm focal length, and 2.4µm pixel compatibility, making it a strong option for modern high-density industrial image sensors. The 50mm focal length is well suited for applications requiring a narrower field of view, longer working distance, or detailed imaging of smaller target areas while maintaining high image clarity.

Engineered as part of Computar’s MPZ-R ruggedized lens series, the V5024-MPZ-R is built to withstand anti-vibration levels up to 10G and anti-shock levels up to 15G. This ruggedized construction helps maintain optical stability and image consistency in environments where cameras and lenses may be exposed to vibration, motion, impact, or continuous equipment operation.

The floating focus design supports excellent image quality from minimum object distance to infinity, while the ultra-low distortion optics help improve measurement accuracy, alignment reliability, and edge-to-edge image performance. With a compact and lightweight design, the V5024MPZR is a strong fit for space-constrained industrial camera installations, automated inspection systems, robotics, embedded vision, and OEM machine vision equipment.

Key Features:

• 50mm focal length for machine vision, inspection, and industrial imaging
• Supports 20 megapixel resolution for high-detail image capture
• Designed for 1" format sensors
• C-mount lens for industrial camera integration
• F2.4 fixed iris design
• Ruggedized construction for harsh machine vision environments
• Anti-vibration resistant up to 10G
• Anti-shock resistant up to 15G
• 2.4µm pixel compatible high-resolution optical design
• Ultra-low distortion for accurate inspection, alignment, and measurement
• Floating focus design provides excellent image quality from MOD to infinity
• Minimum object distance of 0.1m
• Compact and lightweight design for machine vision systems
• Available in small quantities
• Fixed iris can be customized to a desired F-number

Applications:

• Factory automation and industrial inspection
• Machine vision measurement and alignment
• Longer working distance inspection systems
• Robotics and embedded vision systems
• Automated quality control
• Traffic monitoring and intelligent transportation systems
• Security and surveillance imaging
• High-resolution area scan camera systems
• Harsh-environment vision systems
• OEM vision equipment and industrial camera integration

The Computar V5024-MPZ-R belongs to a ruggedized lens family available in 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths, giving machine vision integrators multiple options for matching field of view, working distance, sensor size, and inspection requirements.
