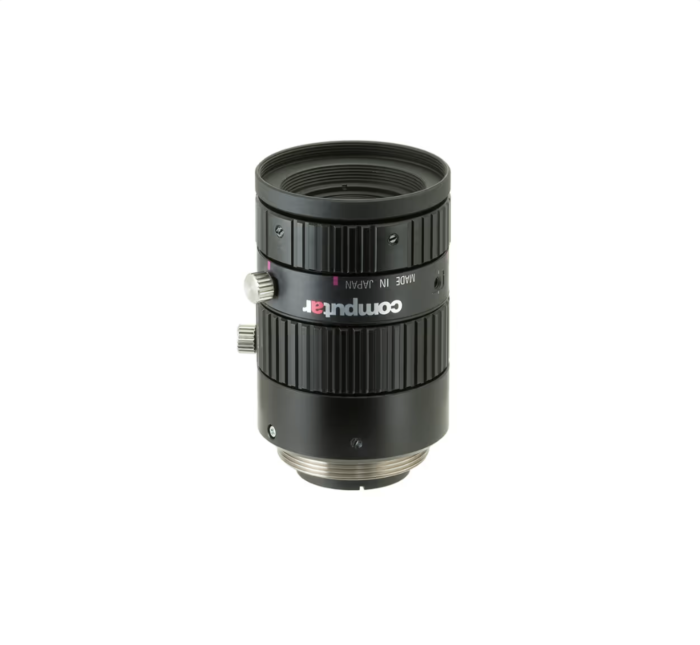

Computar M7538-MPX 2/3" 75mm F2.8 Industrial Lens for 16MP Cameras (C-Mount)
Enhance Your Industrial Imaging with Computar M7538-MPX Lens
The Computar M7538-MPX 2/3" 75mm F2.8 Industrial Lens is engineered for exceptional performance in demanding industrial and commercial applications. This high-resolution lens is designed for 16MP cameras and features a C-mount configuration, making it ideal for various machine vision tasks. With its advanced optical design, the lens supports pixel sizes of 2μm or less, ensuring crisp and clear imaging.
The lens boasts a floating mechanism that optimizes performance across all distances, whether you're capturing close-up details or distant objects. It is also designed to withstand harsh inspection environments with anti-vibration and shock-resistant features, ensuring reliable operation even in challenging settings. The precise focus adjustment, with a rotation angle three times greater than standard lenses, allows for meticulous control over your imaging process. This lens is also available in various focal lengths, including 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm, giving you the flexibility to meet different application needs.
Whether for quality control, automation, or high-speed inspections, the Computar M7538MPX lens delivers the performance and durability required for successful industrial imaging applications.
Features:
- Focal Length: 75mm
- Aperture: F2.8
- Working Distance: 0.25m - Infinity
- Pixel Size Support: 2μm or less
- Design: Anti-vibration and shock-resistant
- Mechanism: Floating mechanism for versatile imaging
- Focus Adjustment: Precise with a focus rotation angle 3x greater than standard
- Iris Mechanism: Click-type for easy adjustments
- Additional Focal Lengths: Also available in 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm
Applications:
- Quality Control
- Automation Processes
- High-speed Inspections
- Precision Measurement
- Surface Inspection
- Object Detection
- Barcode Reading
- Robot Guidance
- Pharmaceutical and Food Inspection
- Electronic Component Inspection
| Effective Lens Aperture | Front - φ18.5mm Rear - φ11.0mm |
| Focal Length | 75mm |
| Max. Aperture Ratio | 1:3.8 |
| Distortion (Inf.) | 0.01% |
| Image Circle Diameter | φ11.8mm |
| Back Focal Length | 11.9mm |
| Operation Range | Iris - F3.8 ‐ F16.0 Focus - 0.25m ‐ Inf. |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Control | Iris - Manual Focus - Manual |
| Filter Size | M30.5 P=0.5mm |
| Dimensions | φ31.8mm × 46mm |
| Operating Temperature | -10℃ ‐ +50℃ |
| Weight | 89g |
| Angle Of View | |
| Sensor Size - 2/3 Type | 8.8mm × 6.6mm (φ11.0mm) Diagonal: 8.6° Horizontal: 6.9° Vertical: 5.2° |
| Sensor Size - 1/2 Type | 6.4mm × 4.8mm (φ8.0mm) Diagonal: 6.3° Horizontal: 5.0° Vertical: 3.8° |
| Sensor Size - 1/3 Type | 4.8mm × 3.6mm (φ6.0mm) Diagonal: 4.7° Horizontal: 3.8° Vertical: 2.8° |
