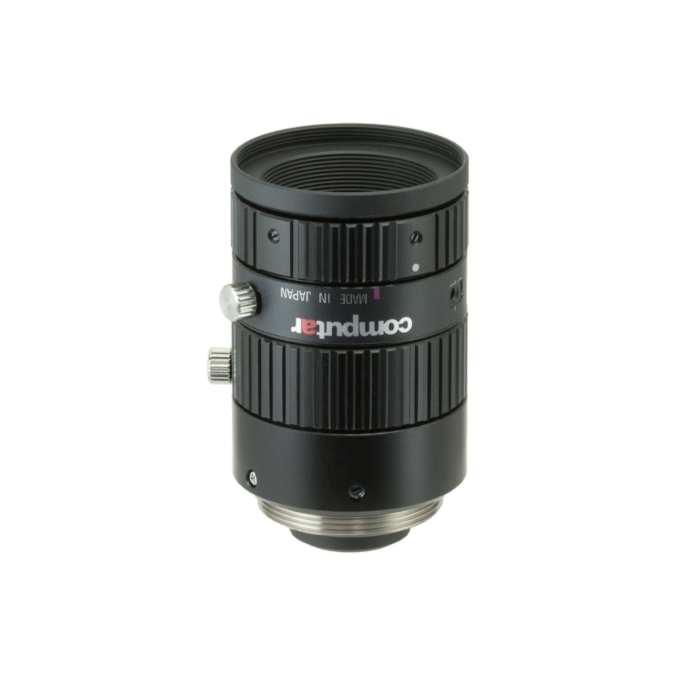

Computar M2528-MPX 2/3" 25mm F2.8 Industrial Lens for 16MP Cameras (C-Mount)

High-Precision Computar M2528-MPX 25mm F2.8 Lens for Rugged Machine Vision and Industrial Applications

The Computar M2528-MPX 25mm F2.8 Industrial Lens is specifically designed for demanding machine vision and industrial applications, making it an excellent choice for customers who need precision imaging in challenging environments. This lens is part of Computar’s renowned Ruggedized Machine Vision Lens Series, which features a unique shock-resistant and anti-vibration design that ensures superior performance, even in harsh inspection settings.

The M2528-MPX lens supports 16MP cameras with 2μm or less pixel size, delivering high-resolution imaging for both close-up and long-distance applications. A standout feature is its floating mechanism, allowing for exceptional optical performance across varying working distances. The lens also includes a click-type iris mechanism, providing easy adjustments while maintaining precise focus with a rotation angle three times greater than standard lenses.

With focal lengths ranging from 8mm to 75mm, this ruggedized lens series adapts seamlessly to diverse machine vision tasks such as product inspection, precision measuring, and automated quality control. Its robust design and precision focus make it ideal for environments where vibration, shocks, or temperature extremes could compromise imaging performance.

Features:

• 2/3" format lens
• 25mm focal length, F2.8 aperture
• Anti-vibration and shock-resistant design
• Supports pixel size of 2μm or less
• Floating mechanism for close-up to long-distance performance
• Focus rotation angle 3x greater than standard lenses
• Click-type iris for precise adjustments
• Also available in 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm focal lengths

Applications:

• Automated inspection systems
• Quality control in manufacturing
• Precision measurement devices
• Industrial robotics vision systems
• High-speed production line monitoring
• Harsh environment imaging tasks
