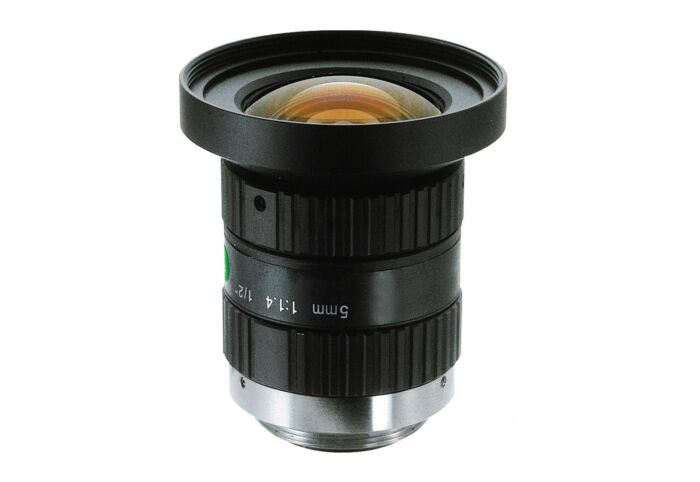

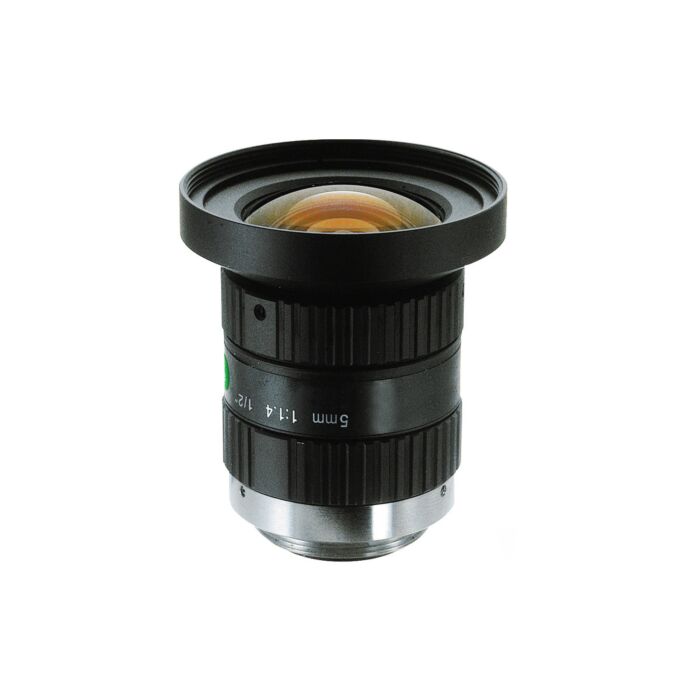

CBC-Computar H0514-MP2 (H0514MP2) 1/2" 5mm f1.4 w/locking Iris & Focus, Megapixel Lens
1/2 type, Megapixel Camera Lens, f=5mm, F1.4.
SKU
H0514-MP2
Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.
Features:
- Low Distortion
- Assured excellent light intensity even in peripheral areas
- Robust design with built-in locking mechanisms for focus and iris
| Focal Length | 5mm |
| Max. Aperture Ratio | 1 : 1.4 |
| Max. Image Format | 6.4mm x 4.8mm |
| Operation Range | Iris: F1.4 - F16C Focus: 0.1m - 0.9m |
| Control | Iris: Manual Focus: Manual |
| Object Dimension at M.O.D. | 1/2 type: 15.0cm x 11.1cm 1/3 type: 11.1cm x 8.3cm |
| Angle of View | 1/2 type : 76.7° (D) / 65.5° (H) / 51.4° (V) 1/3 type : 62.3° (D) / 51.4° (H) / 39.5° (V) |
| Operating Temperature | -10°C - +50°C |
| Effective lens Aperture | Front: 27.8mm Rear: 14.8mm |
| Distortion | 1/2 type: -0.48%(y=4.0) 1/3 type: -2.26%(y=3.0) |
| Back Focal Length | 10.8mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M43 P=0.75mm |
| Dimensions | 44.5mm x 45.5mm |
| Weight | 102g |
