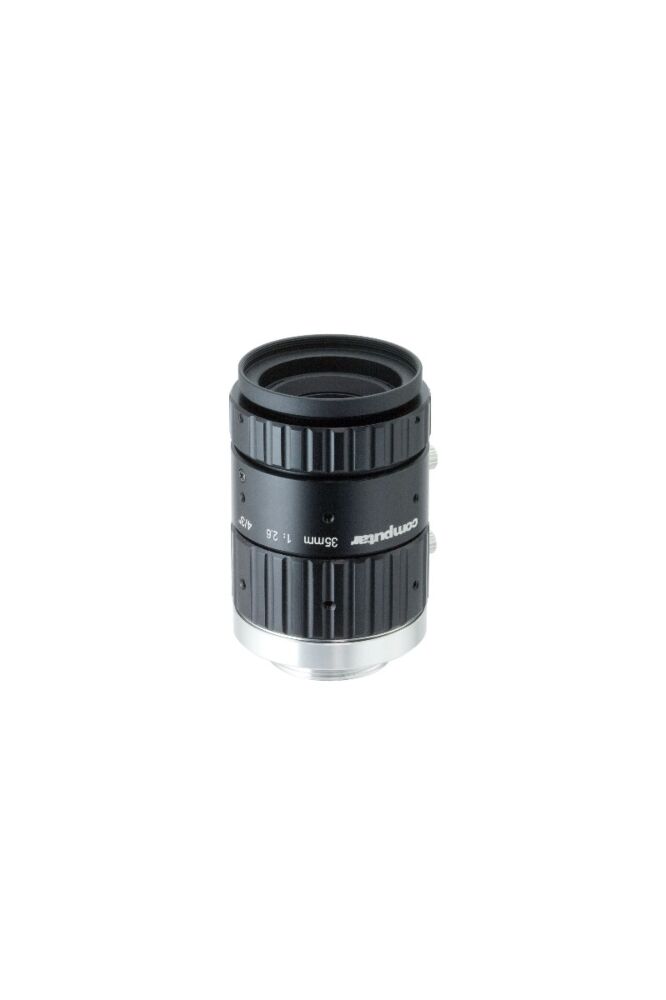

Computar F3526-MPT 45 Megapixel 1.4" 35mm F2.6 (C Mount) Machine Vision Lens
SKU
F3526-MPT
35 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 1.4” Format
- 45 Megapixel
- 35mm Fixed
- F2.6
- IMX350 2.74μm
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Ultra Low Distortion
- Also available in 12mm, 16mm, 25mm, and 50mm
| Focal Length | 35mm |
| Aperture (F) | 1:2.6 |
| Max. Image Format | φ23.1mm |
| Operation Range | Iris F2.6 - 16.0 Focus 0.15m ‐ Inf. |
| Control | Iris Manual Focus Manual |
| Operating Temperature | -10℃ ‐ +50℃ |
| Weight | 122g |
| Sensor Size | 1.4 Type - 19.08mm × 13.03mm - (D)39.6°x (H) 30.6°x (V) 21.1° 1.2 Type - 14.60mm × 12.63mm - (D)30.9°x (H) 23.6°x (V) 20.5° 1.1 Type - 14.19mm × 10.38mm - (D)28.3°x (H) 23.0°x (V) 16.9° |
| Effective Lens Aperture | Front: φ19.1mm Rear: φ18.4mm |
| Distortion (Inf.) | 1.4 Type - 0.01% |
| Back Focal Length | 23.1mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M34 P=0.5mm* |
| Dimensions | φ39mm×58mm |
