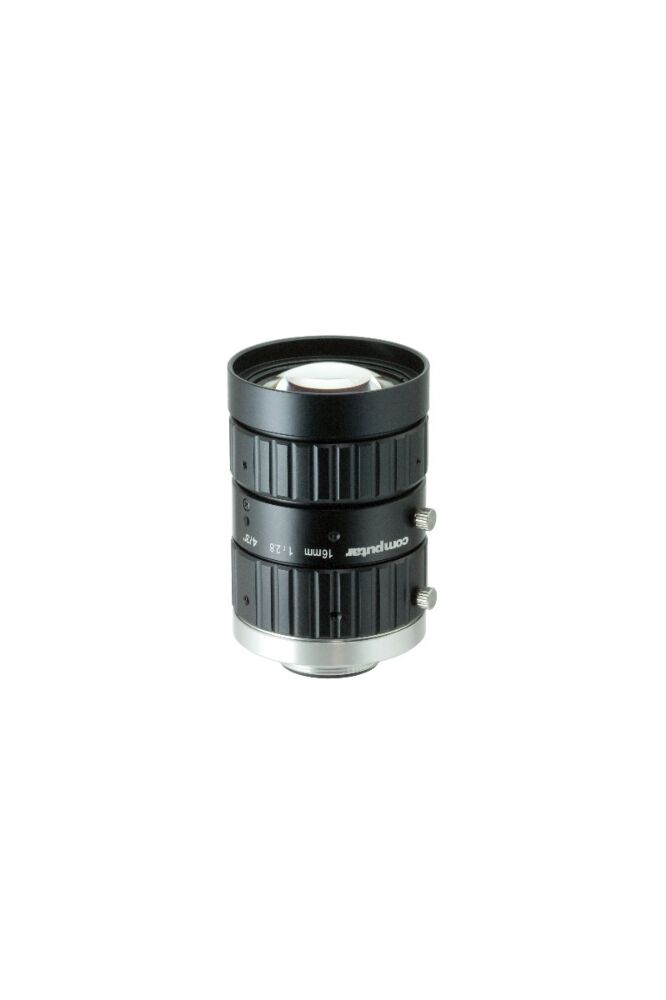

Computar F1628-MPT 45 Megapixel 1.4" 16mm F2.8 (C Mount) Machine Vision Lens

The Computar F1628-MPT is a high-resolution 16mm fixed focal length machine vision lens designed to support up to 45 megapixel imaging performance on large-format sensors up to 1.4". Engineered for precision inspection and measurement applications, this lens delivers exceptional sharpness, low distortion, and consistent image quality across the entire field of view.

Optimized for modern high-resolution sensors such as Sony’s IMX series with 2.74μm pixel size, the F1628MPT ensures accurate detail reproduction for demanding industrial environments. Its F2.8 aperture provides a balanced combination of light sensitivity and depth of field, making it well-suited for controlled lighting setups commonly found in factory automation and machine vision systems.

Built with robust all-glass optics and a durable mechanical design, the F1628-MPT maintains optical stability in continuous operation environments. The manual iris control allows for fine-tuned exposure adjustments, while its compact and lightweight form factor enables easy integration into space-constrained systems.

With ultra-low distortion characteristics, this lens is ideal for applications requiring precise measurement, edge detection, and image stitching without geometric inaccuracies.

Key Features:

• Supports up to 45MP resolution for ultra-high detail imaging
• Compatible with 1.4" large-format sensors
• 16mm fixed focal length for mid-range field of view applications
• F2.8 aperture for optimal light transmission and depth control
• Optimized for ~2.74μm pixel size sensors (e.g., Sony IMX series)
• Ultra-low distortion design for measurement accuracy
• Manual iris control for precise exposure tuning
• Compact, lightweight housing for easy system integration
• High-quality all-glass optics for long-term stability

Typical Applications:

• Factory automation & inspection systems
• Precision measurement & metrology
• Semiconductor and electronics inspection
• Robotics and machine vision guidance
• PCB inspection and quality control
• Optical inspection systems requiring low distortion
