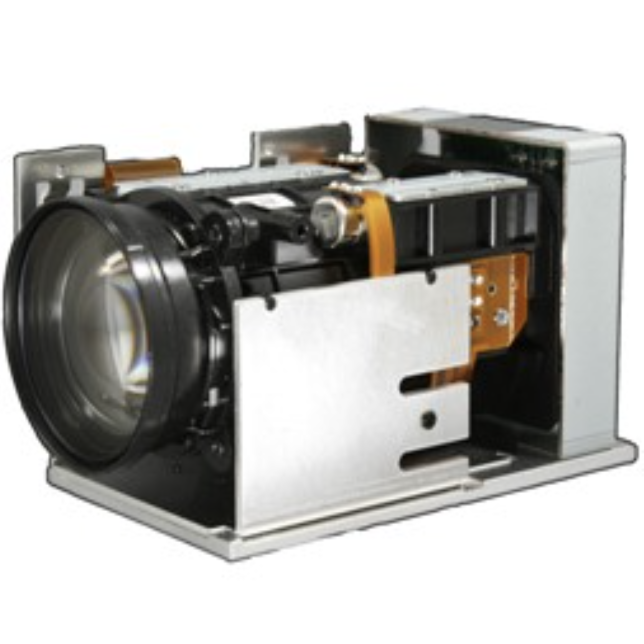

CIS VCC-HD30ZME1 1/3 CMOS Full HD Color Camera
SKU
VCC-HD30ZME1
Quick Overview
The CIS VCC‑HD30ZME1 Full HD 30× zoom camera module is Made in Japan and NDAA compliant, delivering superior 1080p imaging performance via 3G‑SDI/HD‑SDI output. Compact, high‑quality, and trusted for security, broadcast, and industrial applications.
The CIS VCC‑HD30ZME1 (VCCHD30ZME1) is a Full HD color camera module engineered and manufactured in Japan, fully NDAA compliant, and designed for critical imaging applications requiring precision and reliability. This compact camera features a powerful 30× autofocus zoom lens and a 1/3‑type CMOS sensor for sharp 1080p/720p output via 3G‑SDI and HD‑SDI interfaces. Ideal for system integrators seeking broadcast‑grade image quality with secure, NDAA‑approved sourcing.
Features:
- Features CIS own designed Image Signal Processor, “Clairvu” for superb imaging quality
- x30 auto focus zoom lens
- GenLock function (3 values analog signals or black burst)
- Camera can be controlled by RS-232C
- Connecting to an optional remote controller, camera settings can be set by OSD (On Screen Display)
Applications:
- Security
- Broadcast
| Color/Mono | Color |
| Resolution | 1920 x 1080 |
| fps @ Max Resolution | 60p |
| Output Format | 1080p/1080i/720p |
| Sensor Model Name | MN34220 |
| Shutter Type | Roling Shutter |
| Imager Size | 1/3 type CMOS |
| Effective Pixels | 1944 x 1213 |
| Pixel Size (μm) | 2.75 x 2.75 |
| Pixel Clock (MHz) | 148.5 MHz |
| Power Consumption | 6.5W |
| Power Requirement | DC+10～+15V |
| Min. Illumination | F1.6 2.5lx |
| Sensitivity | F3.5 2000lx |
| Shutter Variable Range | 1/4 ～ 1/8,000s |
| Interface | 3G SDI, HD-SDI |
| Lens Mount | Zoom lens installed |
| Weight (g) | 210 |
| Dimensions (W) x (H) x (D)mm | 52 × 55.4 × 96.3 |
