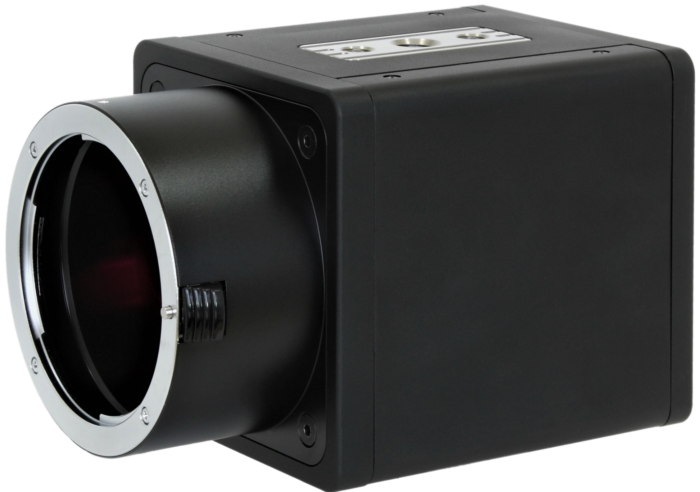

CIS VCC-HD1000A Full HD Ultra High Sensitivity Color Camera
The CIS VCC-HD1000A is a Made in Japan Full HD color camera engineered for professional imaging applications requiring exceptional sensitivity and compliance assurance. Equipped with a 35mm full-frame CMOS image sensor, this high-performance camera delivers outstanding 0.0005 lx ultra-low-light performance and smooth 60fps operation.
Featuring a 3G-SDI interface and CIS’s proprietary Clairvu™ ISP image processing engine, the VCCHD1000A ensures superior imaging quality, precise color reproduction, and high-speed signal processing. The camera complies with BT.2020 (Wide Color Gamut) and BT.2100 (Hybrid Log-Gamma) standards, meeting the latest broadcasting and imaging protocols.
This NDAA compliant industrial camera is ideal for ITS, security and surveillance, medical imaging, and life science systems where reliability, image clarity, and origin assurance matter most.
Features:
- CIS original ISP, state-of-the-art "Clairvu™" for superb imaging quality.
- Infrared-level of high sensivity.
- GenLock function (Black burst or 3-value SYNC.)
- Camera can be controlled by RS-232C and RS-485.
- LTC (Longitudinal Time code).
- OSD (On Screen Display) function can be set by connecting an optional remote controller.
| Color/Mono | Color |
| Resolution | 1920 x 1080 (1080p, 1080i) , 1280 × 720(720p) |
| fps @ Max Resolution | 60 |
| Output Format | 1080p/1080i/720p |
| Sensor Model Name | 35mmFHDXSCA |
| Shutter Type | Roling Shutter |
| Imager Size | 35mm full size CMOS |
| Effective Pixels | 2000 x 1128 |
| Pixel Size (μm) | 19 x 19 |
| Power Consumption | 9.0W at DC+12V IN |
| Power Requirement | DC +11～+17V |
| Min. Illumination | F1.2 0.0005lx |
| Sensitivity | F15 2000lx |
| Shutter Variable Range | 1/11200s ～ 1s |
| Interface | 3G SDI, HD-SDI |
| Lens Mount | EF Mount |
| Weight (g) | 650 |
| Dimensions (W) x (H) x (D)mm | 75 × 75 × 85 |
