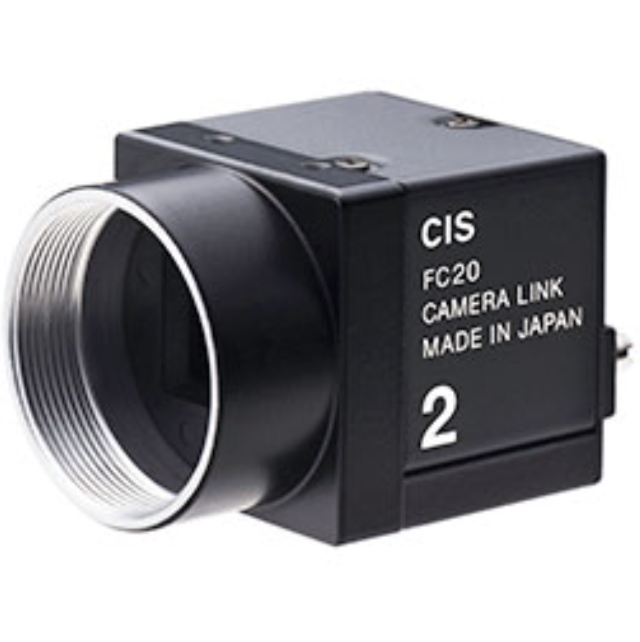

CIS VCC-FC20V49CL 500fps High Speed Camera Link Color Camera
SKU
VCC-FC20V49CL
Quick Overview
CIS VCC-FC20V49CL high-speed Camera Link camera — made in Japan and fully NDAA compliant. Compact 29mm design, 500fps performance ideal for industrial and embedded inspection systems.
The CIS VCC-FC20V49CL (VCCFC20V49CL) is a high-speed, compact industrial camera engineered in Japan and fully NDAA compliant for secure machine vision and embedded imaging applications. Delivering up to 500 fps with superior image integrity, this 29mm cubic, lightweight (approx. 50g) Camera Link model is ideal for speed- and size-sensitive systems where performance and reliability are critical.
Features:
- High speed
- 29mm cubic in size
- Low power consumption
- C lens mount
- External trigger
- 8bit/10bit output
Applications:
- Industrial inspection
- Semiconductor processing
- Bottle inspection
- Label inspection
- LED/LCD wafer systems
| Color/Mono | Color RAW |
| Resolution | VGA |
| fps @ Max Resolution | 500 fps |
| Output Format | 8bit / 10bit |
| Sensor Model Name | CMV2000 |
| Shutter Type | Global Shutter |
| Imager Size | CMOS (Diagonal Length: 4.4mm) |
| Effective Pixels | 640 x 480 |
| Pixel Size (μm) | 5.50 x 5.50 |
| Horizontal Frequency (kHz) | 246.12 |
| Pixel Clock (MHz) | 79.99 |
| Power Consumption | 1.6W Typ |
| Power Requirement | DC12V ±10% |
| Min. Illumination | F1.4, 150 lx |
| Sensitivity | F2.0, 2000 lx |
| Shutter Variable Range | OFF(1/500s)~1/50,000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weight (g) | Approx. 50g |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 29 |
