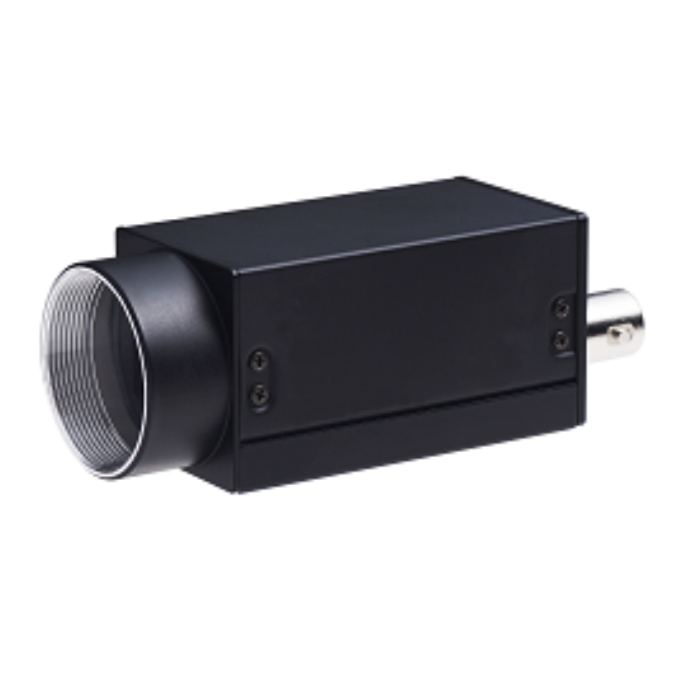

CIS VCC-5CXP7M 1/1.8 CMOS 5M CoaXPress Monochrome Camera
The CIS VCC‑5CXP7M is a high‑performance 5 megapixel machine vision camera engineered and manufactured in Japan, fully NDAA compliant for government and defense‑approved applications. Designed for exceptional reliability and image precision, this global shutter CMOS camera supports the CoaXPress Version 1.1.1 interface, enabling high‑speed data transfer up to approximately 30 meters with a single CXP‑3 or CXP‑6 connection.
Featuring a compact 29mm × 29mm × 55mm design, the CIS VCC‑5CXP7M is ideal for factory automation (FA), inspection, and production line systems requiring sharp, low‑latency imaging. Key image processing functions include trigger shutter, ROI (Region of Interest), 2×2 binning (B/W model only), defective pixel and shading correction, and adjustable gain and gamma controls for precise calibration.
Features:
- Global shutter, CMOS sensor
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
| Color/Mono | Mono |
| Resolution | 5M（2472×2064） |
| fps@Max. Resolution | 50fps(CXP3), 101fps(CXP6) |
| Output Format | Mono 8/10/12 |
| Sensor Model Name | Pregius S IMX547 |
| Shutter Type | Global Shutter |
| Image Sensor | 1/1.8 CMOS(GS) |
| Effective Pixels | 2472×2064 |
| Unit Cell Size (μm) | 2.74×2.74 |
| Pixel Clock (MHz) | 74.25MHz |
| Power Consumption | 3.9 W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 0.9 lx (Shutter 1/30(s), Gain 18dB) |
| Sensitivity | F2.8 400 lx (Shutter 1/30(s), Gain 0dB) |
| Interface | CXP-3/6 |
| Lens Mount | C Mount |
| Weight (g) | 70g |
| Dimensions (W) x (H) x (D)mm | 29×29×55 |
