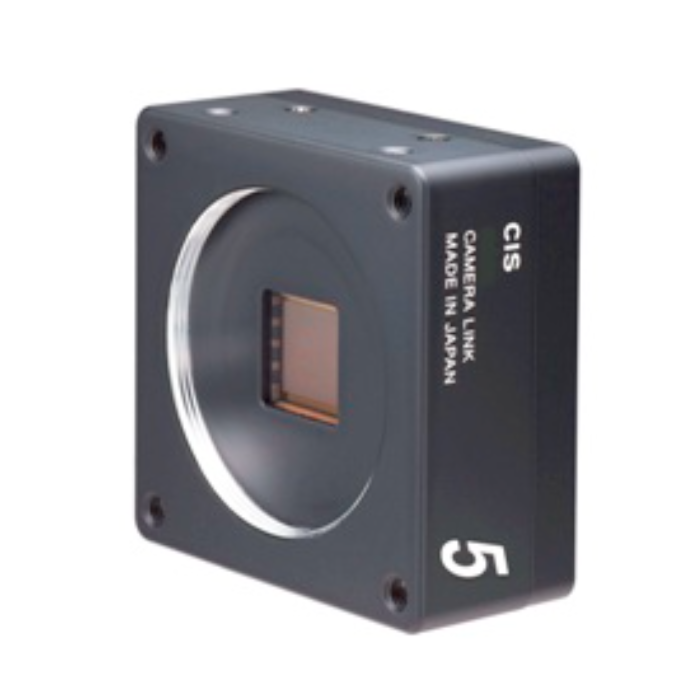

CIS VCC-5CL4R 2/3 CMOS Camera Link High Speed Color Camera
The CIS VCC-5CL4R from Aegis Electronic Group, Inc. is a Made-in-Japan, NDAA compliant 2/3” CMOS Camera Link color camera built for uncompromising performance and reliability in industrial and machine vision environments. Designed for integrators and OEMs that demand both quality and compliance, this high-speed 5-megapixel industrial camera captures ultra-sharp, motion-accurate images at up to 163.4 frames per second.
Its global shutter CMOS sensor (2448 × 2048) ensures precise, low-distortion imaging of fast-moving objects, while the Camera Link interface delivers rapid, low-latency data transfer for real-time processing. Engineered to excel in quality inspection, robotics, and R&D imaging, the VCC-5CL4R provides consistent color performance and enduring reliability across manufacturing, automation, and research environments.
Optional M42-to-C and M42-to-F mount conversion rings expand optical compatibility, making integration simple and versatile. Compact and lightweight at just 55 × 55 × 25 mm and 100g, it’s easy to install in constrained spaces while maintaining superior image quality and low noise.
Features:
- High Speed: Captures up to 163.4fps with HS models
- Resolution: 5M, 2/3 type global shutter CMOS sensor
- Shutter Modes: Fixed trigger and pulse width shutter options
- Output Formats: 8bit / 10bit RAW
- Lens Mounts: Optional M42 to C and M42 to F conversion rings
- Dimensions: Compact 55 x 55 x 25 mm, 100g weight
Applications:
- Quality control and inspection in manufacturing
- High-speed motion analysis
- Automated assembly line monitoring
- Precision tracking in robotics
- Advanced imaging for research and development
| Color/Mono | Color |
| Resolution | 5M |
| fps @ Max Resolution | Full:114fps(8tap), Medium:57fps(4tap), Base: 42fps(3tap)、28fps(2tap) |
| Output Format | 8bit / 10bit RAW |
| Sensor Model Name | IMX250 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2448 × 2048 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | 3.2W (DC+12V IN, 8Tap 10bit, Full frame scan) |
| Power Requirement | DC+12V±10% |
| Min Illumination | F1.4, 4.1lx (Shutter speed 1/58s(off), Gain +36dB, 4Tap 8bit configuration) |
| Sensitivity | F4, 2000lx (Shutter speed 1/58s(off), Gain 0dB, 4Tap 8bit configuration) |
| Shutter Variable Range | OFF～ 1/55,000s |
| Interface | Camera Link |
| Lens Mount | M42 Mount |
| Weigth (g) | 100g |
| Dimensions (W) x (H) x (D)mm | 55 x 55 x 25 |
