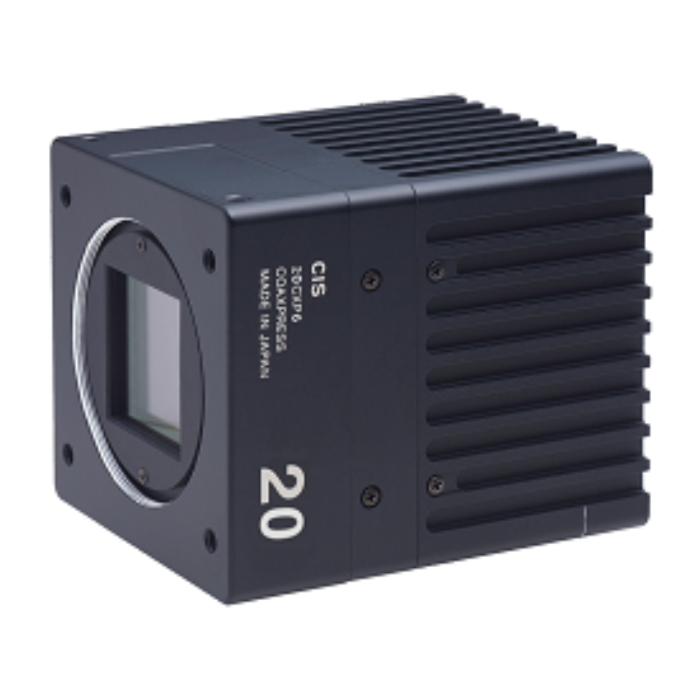

CIS VCC-20CXP6M 1.1 CMOS 20M CoaXPress Monochrome Camera
SKU
VCC-20CXP6M
Quick Overview
CIS VCC-20CXP6M 20MP CoaXPress camera with Sony Pregius S IMX531 sensor. Made in Japan and NDAA compliant. Optimized for high-speed machine vision applications.
The CIS VCC-20CXP6M is a high-performance 20-megapixel CoaXPress camera engineered for precision machine vision applications. Built in Japan for exceptional reliability and image quality, this camera is fully NDAA compliant, making it ideal for government, industrial, and security projects requiring trusted, regulation-ready imaging solutions.
Featuring the advanced Sony Pregius S IMX531 CMOS sensor and supporting CoaXPress Version 1.1.1, the VCC-20CXP6M delivers superior resolution, low noise, and high-speed data transmission for seamless integration into modern vision systems.
Features:
- Global shutter, CMOS sensor
- CoXPress CXP-3, CXP-6, and CXP-12
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- M48 mount
Applications:
- Inspection
- Automation
- Identification
- Classification
| Mono/Color | Mono |
| Resolution | 20M (4512 × 4512) |
| fps@Max. Resolution | 79.6fps (CXP12× 2lane) |
| Output Format | Mono 8 / Mono 10 / Mono 12 |
| Sensor Model Name | Pregius S IMX531 |
| Shutter Type | Global Shutter |
| Imager Size | 1.1 CMOS |
| Effective Pixels | 4512(H) × 4512(V) |
| Pixel Size (μm) | 2.74 x 2.74 |
| Pixel Clock (MHz) | 74.25M |
| Power Consumption | 12.5W |
| Power Requirement | PoCXP/EXT-Vin |
| Min. Illumination | F1.4 TBDlx (Gain+18dB、Shutter1/30s、level=50%) |
| Sensitivity | TBD 400lx (Shutter 1/30s, Gain 0dB) |
| Interface | CXP-3/6/12 |
| Lens Mount | M48 Mount (F Mount Adaptor) |
| Weight (g) | 390ｇ |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 93.3 |
