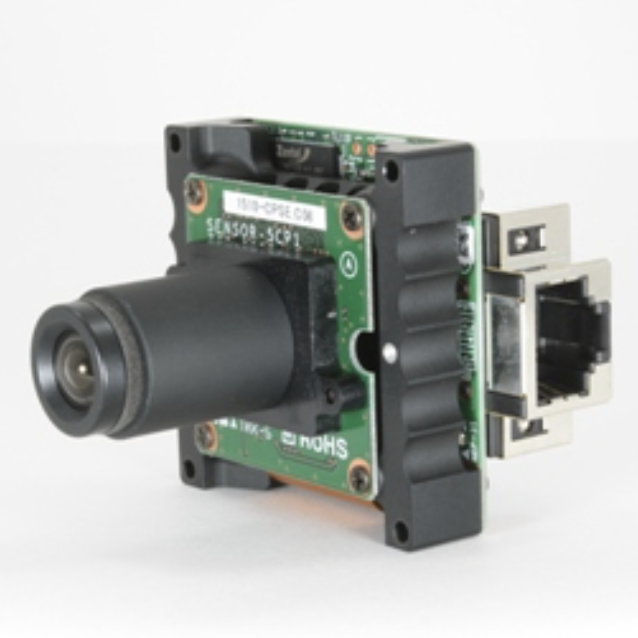

CIS DCC-VCP1GEM GigE Vision Interface Board Camera
*Please Call For Availability, Qty Is Limited*
The CIS DCC‑VCP1GEM is a GigE Vision board camera made in Japan and fully NDAA compliant, featuring a global shutter CMOS sensor, AE, software trigger, and ROI function—ideal for industrial, defense, and embedded imaging applications.
The CIS DCC‑VCP1GEM is a high‑performance GigE Vision board camera made in Japan and fully NDAA compliant, ensuring exceptional image quality and secure deployment in government, defense, and industrial vision applications. This compact camera easily connects directly to any desktop or laptop PC with a GigE port, eliminating the need for additional interface cards—making it both cost‑effective and easy to integrate.
Designed with a global shutter CMOS sensor, the DCCVCP1GEM delivers sharp, distortion‑free images even in high‑motion environments. It also offers auto exposure (AE), software trigger support, and a configurable ROI (Region of Interest) function for optimized image capture. The M12 lens mount provides flexibility for compact optical setups across inspection, machine vision, and embedded imaging systems.
Features:
- Board type camera
- GigE Vision I/F
- Global shutter type CMOS sensor
- AE
- Software trigger
- ROI function
- M12 Lens mount
Applications:
- Industrial Inspection
- Machine Vision
- Surveillance Security
- Motion Analysis
- Robot Guidance
- Traffic Monitoring
- Medical Imaging
- Forensic Analysis
| Color/Mono | Mono |
| Resolution | WVGA |
| fps @ Max Resolution | 120fps |
| Output Format | 10bit |
| Sensor Model Name | EV76C541 |
| Shutter Type | Global Shutter |
| Imager Size | 1/4 CMOS |
| Effective Pixels | 752 x 480 |
| Pixel Size (μm) | 4.5 x 4.5 |
| Power Consumption | 2.7W (DC+12V IN ) |
| Power Requirement | DC+12V±10% or PoE 48V |
| Min. Illumination | 0.09ｌｘ |
| Sensitivity | F8 400lx |
| Shutter Variable Range | OFF ～ 1/1,000 |
| Interface | GigE Vision |
| Lens Mount | M14 |
| Weight (g) | 36g |
| Dimensions (W) x (H) x (D)mm | 42 × 42 × 11.6 |
