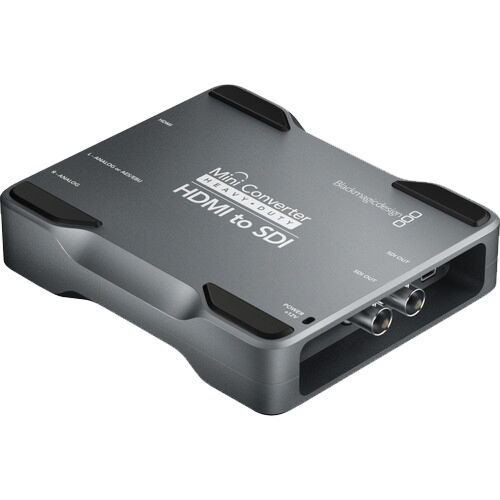

main product photo

Blackmagic Design CONVMH-DUTYBHS Mini Converter H/Duty - HDMI to SDI

SKU
Blackmagic Design Mini Converter H/Duty - HDMI to SDI
Please call for pricing
❤
Add to Compare
Quick Overview
Blackmagic Design CONVMH-DUTYBHS Mini Converter H/Duty - HDMI to SDI

Blackmagic Design Mini Converter H/Duty - HDMI to SDI (CONVMH-DUTYBHS)

Features:

  • Rugged Machined Aluminum
  • HDMI to SDI Conversion
  • 1x HDMI Input
  • 2x 3G/HD/SD-SDI Out
  • AES/EBU & Balanced Analog Audio Inputs
  • Audio Embedding to the SDI Signal
  • USB Input & Mini Switches for Settings
  • Dust & Dirt Resistant
 Input 1x HDMI 2x 1/4" jacks for either (2) channels of balanced analog audio or (1) stereo AES/EBU connection
 Output 2x BNC for (2) SDI (switchable between SD, HD & 3 Gb/s SDI)
 Multi-Rate Support Auto detection of HD or SD HDMI input
 Computer Interface USB 2.0 (480 Mb/s) for updates and configuration
 Re-clocking Yes
 Format Support SDI: 625p25 PAL, 525p29.97 NTSC, 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60 (connections automatically switch between SD, HD, and 3G) HDMI: 625p25 PAL, 525p29.97 NTSC, 625p50 PAL, 525p59.94 NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50, 720p59.94/60, 1080p50, and 1080p59.94/60
 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
 Sampling SDI Video: 4:2:2 SDI Audio: Television standard sample rate of 48 kHz and 24 bit
 Color Precision SDI/HDMI: 4:2:2
 Color Space SDI/HDMI: YUV
 Color Protection For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert, or transmit video or audio from copy-protected sources, e.g., video devices using HDCP
 Software Control Mac OS X and Windows software upgrade via USB
 Settings Control Mini-switches or via USB & software
 Firmware Upgrade Via included firmware updater application
 Format Conversion HD down conversion
 Power Requirement 12V DC (power supply included) Operational voltage range: 12-31V DC
 Power Consumption 110V: 60 mA 220V: 30 mA
