Blackmagic - Mini Converter HDMI to SDI Image

Blackmagic - Mini Converter HDMI to SDI

Blackmagic Design CONVBATT-HS Battery Converter HDMI to SDI

Blackmagic Design CONVBATT-HS Battery Converter HDMI to SDI

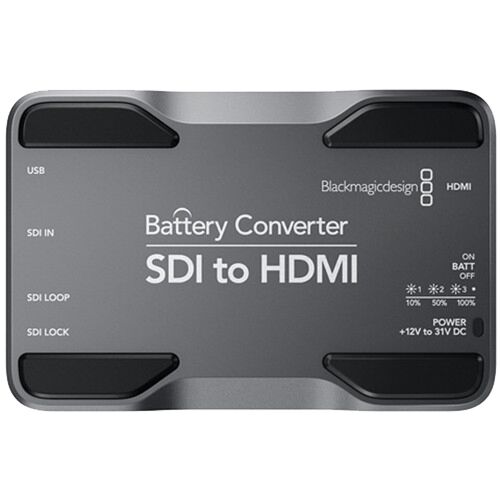

Blackmagic Design CONVBATT-SH Battery Converter SDI to HDMI

Blackmagic Design CONVBATT-SH Battery Converter SDI to HDMI
SKU
Blackmagic Design CONVBATT-SH Battery Converter SDI to HDMI

Blackmagic Design Battery Converter HDMI to SDI (CONVBATT/HS)

Features:

  • Converts an HDMI Input to 2 SDI Outputs
  • Allows Use of Longer-Distance SDI Cables
  • Both the In and Outs Support 1080p60 HD
  • Supports HDMI and SDI Embedded Audio
  • Built-In Rechargeable Battery
  • AC Power Supply Included
  • Features Battery Toggle Switch
 Inputs/Outputs SD/HD-SDI output x2, automatically match the SD/HD HDMI video input HDMI input x1, type A USB 2.0 input x1, 480 Mb/s
 Multi-Rate Support Auto detection of HD or SD HDMI inputs
 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
 SDI Video Rates SDI video connections are switchable between SD and HD
 Sampling SDI video: 4:2:2 SDI audio: television standard sample rate of 48 kHz and 24 bit
 Color Precision SDI: 4:2:2 HDMI: 4:2:2 in all formats and 4:4:4 up to 1080p29.97
 Color Space SDI: YUV HDMI: YUV
 SDI Auto Switching Automatically selects between SD-SDI, HD-SDI and 3G-SDI
 Format Support SDI: 525/29.97 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24,1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60 HDMI: 525/29.97 NTSC, 625/25 PAL,720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60
 Copy Protection HDMI input is unable to capture from copy protected HDMI sources / always confirm copyright ownership before capture or distribution of content
 Video Lock Indicator LED indicates input video signal lock
 Software Update Via USB
 Internal Software Upgrade Via included software updater application
 Power Supply Integrated Lithium-ion Polymer rechargeable battery. 12V-31V DC port for external battery power or use included 12V AC adapter with international socket adapters for all countries. Cable tie point.
 Battery Over 2 hours battery life. Battery charge indicator with On/Off switch to preserve battery life
 Power Consumption Typically 2.2 W
 Operational Voltage Range 12 - 31 VDC
