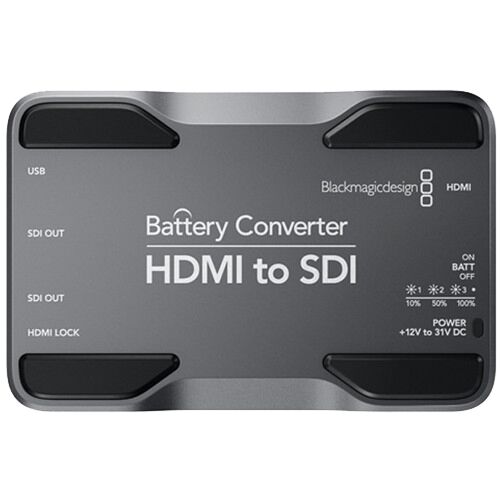

Blackmagic Design CONVBATT-HS Battery Converter HDMI to SDI
Blackmagic Design Battery Converter HDMI to SDI (CONVBATT/HS)
Features:
- Converts an HDMI Input to 2 SDI Outputs
- Allows Use of Longer-Distance SDI Cables
- Both the In and Outs Support 1080p60 HD
- Supports HDMI and SDI Embedded Audio
- Built-In Rechargeable Battery
- AC Power Supply Included
- Features Battery Toggle Switch
| Inputs/Outputs | SD/HD-SDI output x2, automatically match the SD/HD HDMI video input HDMI input x1, type A USB 2.0 input x1, 480 Mb/s |
| Multi-Rate Support | Auto detection of HD or SD HDMI inputs |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between SD and HD |
| Sampling | SDI video: 4:2:2 SDI audio: television standard sample rate of 48 kHz and 24 bit |
| Color Precision | SDI: 4:2:2 HDMI: 4:2:2 in all formats and 4:4:4 up to 1080p29.97 |
| Color Space | SDI: YUV HDMI: YUV and RGB |
| SDI Auto Switching | Automatically selects between SD-SDI, HD-SDI and 3G-SDI |
| Format Support | SDI: 525/29.97 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60 HDMI: 480p60 NTSC, 576p50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60 |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources / always confirm copyright ownership before capture or distribution of content |
| Video Lock Indicator | LED indicates input video signal lock |
| Software Update | Via USB |
| Internal Software Upgrade | Via included software updater application |
| Power Supply | Integrated Lithium-ion Polymer rechargeable battery. 12V-31V DC port for external battery power or use included 12V AC adapter with international socket adapters for all countries. Cable tie point. |
| Battery | Over 2 hours battery life. Battery charge indicator with On/Off switch to preserve battery life |
| Power Consumption | Typically 2.3 W |
| Operational Voltage Range | 12 - 31 VDC |
