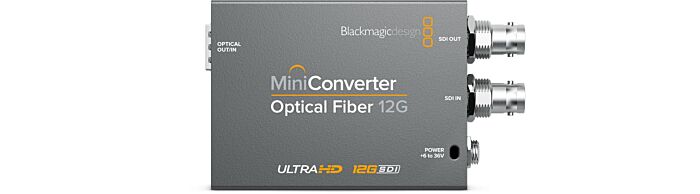

Blackmagic Design BMD-CONVMOF12G Mini Converter Optical Fiber 12G
Blackmagic Design BMD-CONVMOF12G Mini Converter Optical Fiber 12G
SKU
Blackmagic Design BMD-CONVMOF12G Converter Optical Fiber 12G
Blackmagic Design BMD-CONVMOF12G Mini Converter Optical Fiber 12G
Features:
- Use your HDMI camera with an SDI monitor on set
- 6G-SDI Ultra HD Models
- Multiple Audio Connections
- Redundant SDI Inputs - runs two alternate sdi input cables
- True broadcast quality for professional use
- HDMI Instant Lock
- Affordable Optical Fiber
- Easy Control - Simple to set up and update
| SDI Video Inputs | 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails |
| SDI Video Outputs | 1 x SDI loop output |
| HDMI Outputs | HDMI Type A out |
| Analog Audio Outputs | 2 channels of balanced analog audio |
| Digital Audio Outputs | 4 channels of AES/EBU digital audio |
| SDI Redundant Input | Automatically switches over if main SDI input is lost |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI |
| Updates and Configuration | USB |
| Reclocking | Yes |
| SD Video Standards | 625i50 PAL, 525i59.94 NTSC |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI |
| SDI Video Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 6G-SDI |
| HDMI Video Standards | 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| Settings Control | Mini Switches or USB software |
| Power Requirements | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power Consumption | 5.2 Watts |
| Operational Voltage Range | 12 - 31V DC |
| Operating Temperature | 0⁰ to 40⁰ C (32⁰ to 104⁰ F) |
| Storage Temperature | -20⁰ to 45⁰ C (-4⁰ to 113⁰ F) |
