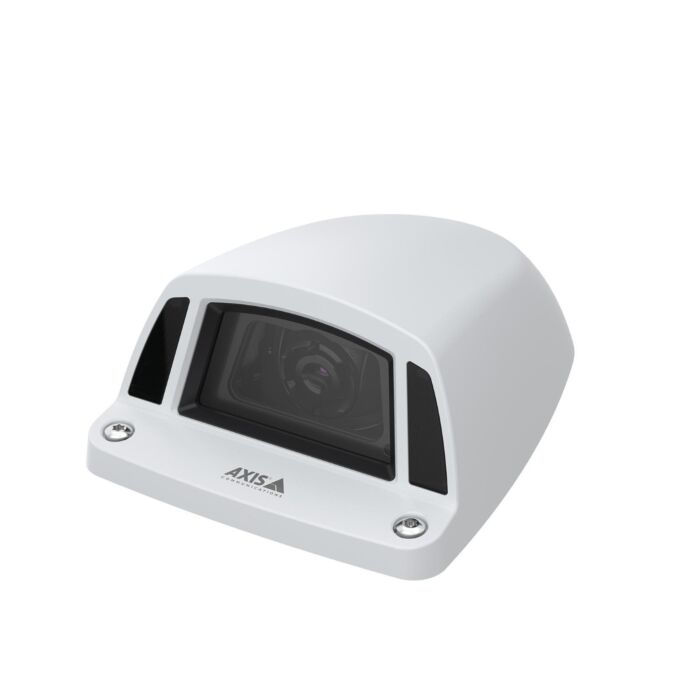

AXIS P3925-LRE Network Camera
Revolutionize Transportation Surveillance with AXIS P3925-LRE Network Camera
In the realm of industrial security cameras, the AXIS P3925-LRE Network Camera stands out as a compact and robust solution, designed to elevate transportation surveillance to new heights. This specialized camera is optimized for side view monitoring on buses, trains, and various transportation vehicles, ensuring a comprehensive approach to safety and security.
Complying with stringent industry standards, including EN50155 and EN45545-2, the AXIS P3925-LRE is a true powerhouse in exterior onboard surveillance. Its IK10+, IP66/IP67/IP6K9K rating guarantees durability and reliability in diverse environmental conditions. Equipped with cutting-edge features such as IR Illumination, Electronic Image Stabilization (EIS), and Forensic WDR, this camera delivers superior image quality around the clock, even in challenging lighting scenarios.
The versatility of the AXIS P3925-LRE is evident in its compatibility with both M12 and RJ45 connectors, facilitating easy installation in a wide range of vehicles, from trains and buses to emergency service vehicles. The camera's HDTV 1080p resolution, coupled with Lightfinder technology, ensures sharp, color images in poor lighting conditions. Moreover, the low latency mode minimizes delays, while built-in cybersecurity features provide an added layer of protection against unauthorized access.
Explore the AXIS P3925-LRE Network Camera to redefine the standards of transportation surveillance, guaranteeing safety and peace of mind in industrial and machine vision applications.
Features:
- EN50155 and EN45545-2 Compliance
- IR Illumination and Electronic Image Stabilization (EIS)
- Forensic WDR for High-Quality Images
- Low Latency Mode for Reduced Latency
- Built-in Cybersecurity Features
- IK10+, IP66/IP67/IP6K9K Rating
- M12 and RJ45 Connectors
- HDTV 1080p Resolution
- Lightfinder Technology for Poor Lighting Conditions
Applications:
- Exterior Onboard Monitoring
- Transportation Industry Surveillance
- Identification of Maintenance Needs on Rolling Stock
- Pantograph Collector Strips Monitoring
- 24/7 Surveillance in Various Lighting Conditions
|
Models |
AXIS P3925-LRE RJ45 |
|
Image Sensor |
1/2.9” Progressive scan RGB CMOS |
|
Lens |
6.0 mm, F1.9 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.07 lux at 30 IRE F1.9 |
|
Shutter Speed |
1/33500 s to 2 s |
|
Camera Angle Adjustment |
Pan ±30°, tilt 15 - 90°, rotation ±175° |
|
Model |
ARTPEC-7 |
|
Memory |
1 GB RAM, 512 MB Flash |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
1280x960 to 160x120 |
|
WDR |
Forensic WDR |
|
Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Compression, brightness, sharpness, contrast, white balance, Forensic WDR, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic overlay, 20 individual polygonal privacy mask, mirroring of images, defogging, electronic image stabilization |
|
Pan/Tilt/Zoom |
Digital PTZ, preset positions, guard tour, control queue |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
|
Event Conditions |
Device status: above operating temperature, above or below |
|
Event Actions |
Guard tours |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Pixel counter |
|
Applications |
Included |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 EN 45545-2, NFPA 130c Environment IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of Network NIST SP500–267 Cybersecurity |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1x (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66/67-, NEMA 250 4X-, IP6K9K- and IK10+-rated aluminum casing with AR-coated tempered glass |
|
Sustainability |
PVC Free |
|
Mounting |
Outside vehicles and rolling stock |
|
Power |
Camera: Power over Ethernet (PoE) |
|
Connectors |
RJ45: male, 10BASE-T/100BASE-TX |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 20 m (65.6 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card with UHS Speed Class U1 |
|
Operating Conditions |
Normal: -40 °C to 55°C (-40 °F to 131°F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, Environment IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, Network NIST SP500–267 |
|
Dimensions |
160 x 116 x 63 mm (6.30 x 4.57 x 2.48 in) |
|
Weight |
RJ45: 770 g (1.70 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, lens tool, Resistorx® L-key, masking kit |
|
Optional Accessories |
Lenses |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
