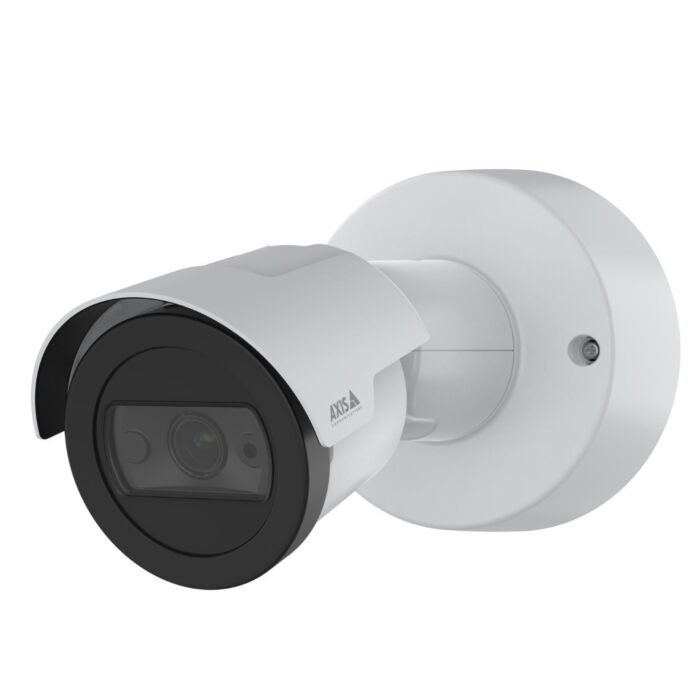

AXIS M2036-LE Bullet Camera
AXIS M2036-LE Bullet Camera: Unleashing Affordable Excellence for Industrial Surveillance
Elevate your industrial surveillance with the AXIS M2036-LE, a cutting-edge bullet-style camera that seamlessly combines affordability with Axis excellence. Boasting a Quad HD 1440p/4 MP resolution and a wide horizontal field of view at 129°, this camera delivers exceptional clarity in diverse industrial environments. The integration of a deep learning processing unit (DLPU) empowers the camera with advanced analytics, including human and vehicle detection, tailored to meet specific industrial needs.
Designed for outdoor use, the camera features built-in IR illumination for discreet surveillance in complete darkness. Its Wide Dynamic Range (WDR) ensures clear imaging even in challenging lighting conditions. With an IK08 rating and resistance to extreme temperatures (-30 °C to 50 °C), this camera thrives in tough conditions. It holds IP66, IP67, and NEMA 4X ratings, making it resistant to harsh weather, dust, sand, salt spray, ice formation, and high-water pressure.
The AXIS M2036-LE prioritizes ease of installation with its compact and lightweight design. Supporting Power over Ethernet (PoE), it simplifies connectivity with just one network cable. The camera's flexibility extends to various installation options, including walls, ceilings, poles, or corners. In summary, AXIS M2036-LE is the epitome of reliability, performance, and affordability for industrial and machine vision applications.
Features:
- Quad HD 1440p/4 MP Resolution
- Deep Learning Analytics with DLPU
- Compact and Lightweight Design
- Built-in IR Illumination for Night Surveillance
- Wide Dynamic Range (WDR) for Clear Imaging
- IK08-Rated for Tough Environments
- IP66, IP67, NEMA 4X Ratings
- Easy Installation with Power over Ethernet (PoE)
- Edge-to-Edge Technology for Axis Speaker Connectivity
Applications:
- Industrial Surveillance
- Machine Vision Systems
- Outdoor Security Monitoring
- Harsh Environment Monitoring
- Nighttime Surveillance in Complete Darkness
|
Models |
AXIS M2036-LE |
|
Image Sensor |
1/2.7” progressive scan RGB CMOS |
|
Lens |
Fixed iris, fixed focus, IR corrected |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Lightfinder |
|
Shutter Speed |
1/38500 s to 1/5 s |
|
Model |
CV25 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
2304x1728 to 320x240 (4:3) |
|
Frame Rate |
Up to 25/30 fps with power line frequency |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 115 dB depending on scene, text and image overlay, privacy masks, mirroring of images |
|
Pan/Tilt/Zoom |
Digital PTZ |
|
Audio Output |
Audio features through portcast technology: two-way audio connectivity, voice enhancer |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Event Conditions |
I/O: manual trigger |
|
Event Actions |
Record video: SD card and network share |
|
Built-in installation aids |
Pixel Counter |
|
AXIS Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66-/IP67-, NEMA 4X- and IK08-rated Aluminum and plastic casing |
|
Sustainability |
PVC free, BFR/CFR free |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5 W, max 12.95 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 855 nm IR LEDs |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, Safety IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) NIST SP500-267 Cybersecurity ETSI EN 303 645 |
|
Dimensions |
Length: 170 mm (6.7 in) ø 101 mm (4.0 in) |
|
Weight |
491 g (1.1 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, Torx® L-key, connector guard |
|
Optional Accessories |
AXIS T94B03L Recessed Mount |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
|
Warranty |
5 year |
