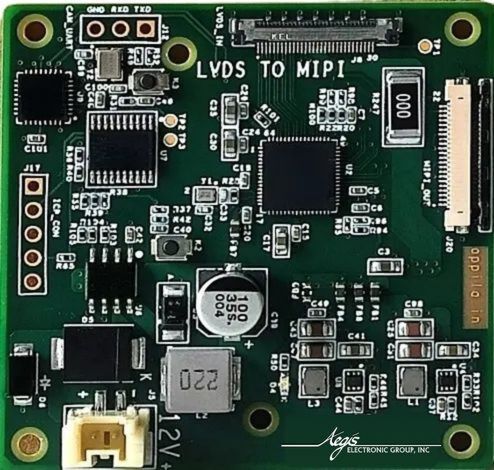

Aegis MIPI-CSI2-EV LVDS to MIPI CSI-2 Bridge Board for Sony & Tamron Block Cameras | NVIDIA Jetson Compatible
The Aegis MIPI-CSI2-EV Bridge Board converts LVDS video signals from Sony, Tamron, Wonwoo, Videology, KT&C, and other compatible block cameras into a 4-lane MIPI CSI-2 interface for embedded AI computing platforms.
Designed for seamless integration with NVIDIA Jetson systems, including the Jetson Orin Nano Super Developer Kit, this compact bridge board enables real-time Full HD 1080p60 video streaming with integrated VISCA camera control.
With a 50 × 50 mm industrial footprint, wide operating temperature range, and optimized signal integrity, the MIPI-CSI2-EV is ideal for AI edge computing, robotics, machine vision, defense imaging, and embedded vision systems.
The Aegis MIPI-CSI2-EV LVDS to MIPI CSI-2 Bridge Board from Aegis Electronic Group enables seamless integration of professional LVDS block cameras with modern embedded AI computing platforms, including NVIDIA Jetson Orin Nano and other Jetson-based development kits.
This high-performance bridge converts LVDS video output from cameras such as Sony FCB series, Tamron LVDS block cameras, and other compatible 30-pin KEL interface cameras into a 4-lane MIPI CSI-2 signal, enabling direct connection to embedded processors designed for edge AI applications.
Built on a low-latency architecture, the MIPI-CSI2-EV allows real-time Full HD 1080p60 video streaming, maintaining high signal integrity and synchronization required for advanced computer vision workloads.
Integrated VISCA camera control is implemented through an onboard I²C-to-UART bridge, allowing the host platform to control zoom, focus, exposure, and camera parameters directly through the Jetson system without additional serial converters or external control hardware.
The board’s industrial-grade design, 12 V regulated power input, and EMI-optimized layout ensure stable operation in demanding environments such as robotics, machine vision, defense imaging, and autonomous systems.
With its compact 50 × 50 mm footprint, the MIPICSI2EV bridge board provides a reliable, plug-and-play interface for integrating LVDS cameras into AI edge systems and embedded vision platforms.
Key Features:
- LVDS to MIPI CSI-2 Video Conversion
- Supports Sony, Tamron, Wonwoo, Videology, Skoopia & KT&C LVDS block cameras
- 4-Lane MIPI CSI-2 Output for high-bandwidth video
- Compatible with NVIDIA Jetson Orin Nano Super Developer Kit
- Works with AVerMedia D133 and Waveshare Jetson IO-Base carrier boards
- Full HD 1080p @ 60fps streaming
- VISCA camera control via I²C-to-UART bridge
- Compact 50 × 50 mm embedded form factor
- Industrial operating temperature –25 °C to +85 °C
- Low latency architecture for real-time AI vision
Applications:
- AI Edge Computing & Vision Analytics
- Robotics & Autonomous Platforms
- Industrial Machine Vision
- Medical Imaging Systems
- UAV / Drone Vision Payloads
- Security & Surveillance Systems
- Broadcast Video Systems
- Research & Embedded Vision Development
| Product Model | MIPI-CSI2-EV |
| Function | LVDS to MIPI CSI-2 Bridge Board |
| Camera Compatibility | Sony, Tamron, Wonwoo, Skoopia, Videology, KT&C LVDS Block Cameras (Sony FCB-EV9520L Pinout) |
| Camera Interface | 30-Pin Micro-Coax (Sony/Tamron LVDS) |
| MIPI Output | 4-Lane MIPI CSI-2 (FFC/FPC) |
| Supported Video Format | Up to 1080p @ 60fps (camera dependent) |
| Camera Control | VISCA via UART bridged to I²C |
| Host Platform Compatibility | NVIDIA Jetson Orin Nano Super Developer Kit, AVerMedia D133, Waveshare Jetson IO-Base |
| Input Voltage | 12 V DC regulated |
| Input Current | 0.5 A typical (1.5 A max with camera) |
| Indicators | Power LED (Green) |
| Board Dimensions | 50 mm × 50 mm |
| Weight | Approx. 12.5 g |
| Operating Temperature | –25 °C to +85 °C |
| Compliance | MIPI CSI-2 Specification, RoHS |
