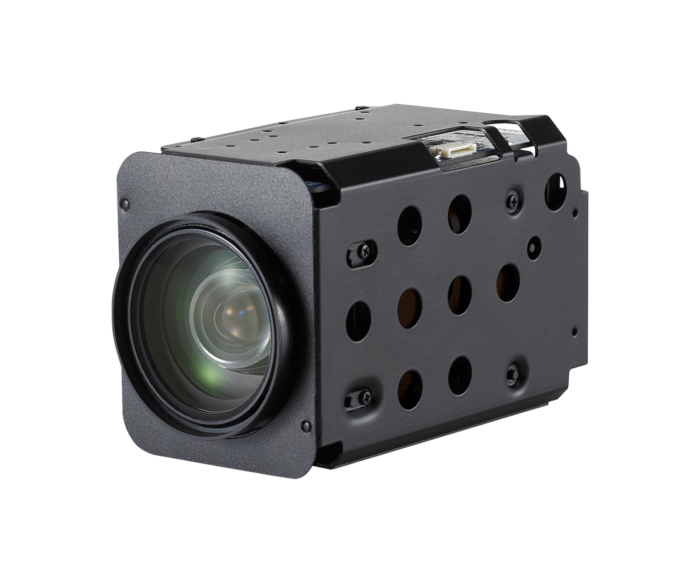

Aegis AEG-55X 2MP 55x Zoom Block Camera
SKU
AEG-55X
Discover the cutting edge AEG-55X camera, packed with powerful features for many applications. Enjoy crystal-clear images and precision with the 1/2.8" 5MP Sony CMOS sensor. Zoom in up to 55x optically and 32x digitally, capturing every detail even from a distance. Day & Night (ICR) capability adapts to any lighting condition. Stay one step ahead with Intelligent Motion Detection and Defog Function. AEG55X has easy integration with support for VISCA, Pelco-D/P Protocol.
Features:
- 1/2.8" 5MP Sony CMOS sensor
- 1080p 30fps/25fps, 720p 30fps/25fps
- 55x Optical Zoom(4.25mm~234mm) & 32x Digital Zoom
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : LVDS, CVBS
Applications:
- Security
- Surveillance
- Intelligent Traffic
- Remote Monitoring
- Video Conferencing
- Drones
- UAV's
- Medical
- Robotics
- Aircraft
- Police Vehicle Camera
- RVI Industrial Camera
- House of Worship Camera
- Off-Line Industrial Inspection
- Medical Imaging
- Autonomous Vehicles
- Shipborne Systems
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 2,704 (H) x 2,104 (V) = 5.69M Pixels |
| Active Pixels | 2,616 (H) x 1,960 (V) = 5.13M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital : 1080p 30(25)fps, 720p 30(25)fps Analog : CVBS |
| Min. Illumination | Color(1/30s, 72.0dB) : 0.02 lux , BW(1/30s, 72.0dB) : 0.002 lux Color DSS(1/1s, 72.0dB) : 0.002 lux , BW DSS(1/1s, 72.0dB) : 0.0002 lux |
| Video Output | Digital: LVDS Analog: CVBS |
| S/N Ratio | more than 50dB (AGC off) |
| Lens Type | 40x Day & Night Zoom Lens |
| Zoom Ratio | Optical 55x, Digital 32x Zoom |
| Focal Length | f = 4.25 mm ~ 234 mm |
| Aperture Ratio | F1.6 (wide) ~ F4.95 (tele) |
| Angle Of View (D, H, V) | Wide: 69.30° 62.13° 37.44° Tele: 1.48° 1.29° 0.73° |
| AF Mode | Auto / One Push / Manual / Auto-Ext |
| Min. Distance | 0.1 / 1.5 / 3.0 / 6.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10Days |
| Digital Zoom | Off / MAX 2x ~ 32x |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Gain Control(AGC) | 0 ~ 10 steps |
| Shutter Speed | 1/1 ~ 1/100,000 sec |
| Iris | Close ~ F1.6 |
| Digital Slow Shutter (DSS) | Off / x2 / x4 / x8 / x16 / x32 |
| Flickerless | Off / On / Auto |
| Brightness | 0 ~ 14 steps |
| Back Light | Off / BLC / HLC |
| Day & Night | Auto / Day / Night / Ext-in |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| DNR | 2D/3D, 2D+3D |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 15 steps |
| DWDR | Off / Manual / Auto |
| Defog | Off / Manual / Auto |
| Privacy Mask | Off / On (8 points) |
| Motion Detection | Off / On (4 points) |
| Defect Detection | Off / On |
| System | NTSC / PAL |
| Communication | Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P |
| Power Source | 9V to 15V DC |
| Power Consumption | Max 540mA |
| Power Input | Connector |
| Video Output | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH) |
| Dimensions | 54(W) x 64(H) x 101(D) |
| Weight | 355g |
