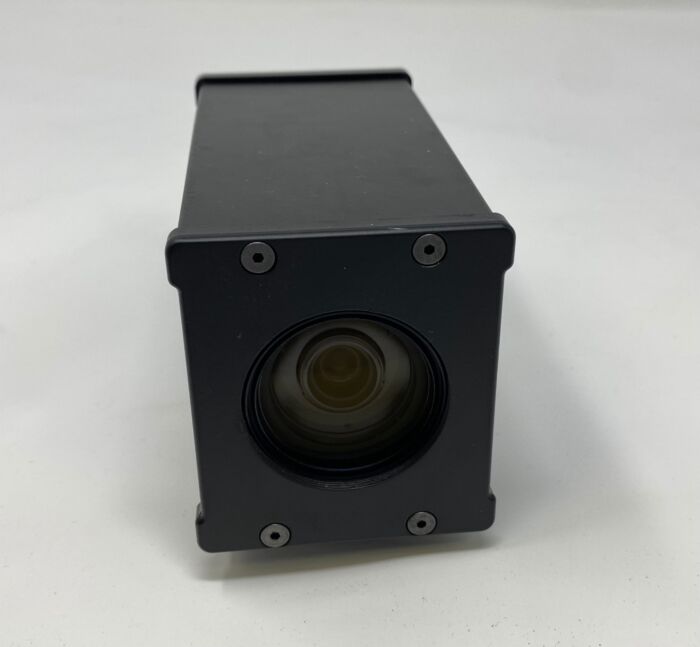

Aegis AEG-9500-SDI AF 30x Zoom Cameras
Experience Precision Imaging with AEG-9500-SDI AF Zoom Cameras
The Aegis AEG-9500-SDI AF Zoom Camera integrates Sony's cutting-edge Starvis Sensor 2 1080P technology with advanced auto-focus capabilities, offering unparalleled precision and flexibility in industrial imaging applications. With its HD-SDI connection, this camera ensures high-definition video output, ideal for demanding industrial and machine vision environments.
Equipped with a 1/2.8-type ExmorR Starvis Sony CMOS sensor, this camera delivers exceptional image clarity even in low-light conditions, with an impressive 30X optical zoom for detailed inspection tasks. The Auto Focus feature ensures sharp focus on objects of interest, enhancing accuracy and efficiency in inspection processes.
Featuring a compact design and robust construction, the AEG9500SDI is suitable for diverse industrial settings, including remote viewing, low vision aids, broadcast applications, and point-of-view (POV) setups. Its versatility extends to industrial inspection tasks, where precision imaging is crucial for quality control and defect detection.
With features such as Day/Night Mode, Auto White D mode, E-Flip, and Mirror Image, this camera offers customizable options to adapt to specific application requirements. Additionally, its 1/4-20 Standard Mounting Bracket facilitates easy installation in various setups.
Experience superior performance and reliability with the AEG-9500-SDI AF Zoom Camera, ensuring seamless integration into industrial automation systems while meeting RoHS compliance standards. Elevate your industrial imaging capabilities with precision and clarity, empowering your operations with unmatched visual insights.
Features:
- 1/2.8-type ExmorR Starvis Sony CMOS sensor
- 30X Optical Zoom
- Auto Focus
- HD-SDI connection
- Low-light performance (0.1 Lux)
- Day/Night Mode
- Auto White D mode
- E-Flip and Mirror Image functionality
- Compact design with 1/4-20 Standard Mounting Bracket
- RoHS Compliant
Applications:
- Industrial inspection
- Precision imaging
- Remote viewing
- Low vision aids
- Broadcast
- Point-of-view (POV) setups
| Image Sensor | Progressive Scan CMOS image sensor 1/2.8" type Exmor R Starvis | ||
| Number of total pixels (H)x(V) | 1952 x 1236, 2.41 MP | ||
| Number of effective pixels (H) x (V) | 1944 x 1224, 2.38 MP | ||
| Number of recommended recording pixels (H) x (V) | 1920 x 1080 | ||
| Lens | Focal length | 4.3 (mm) to 129 (mm) | |
| Magnification | 30X | ||
| Horizontal angle of view | 63.7 [degree] (Wide) 2.3 [degree] (Wide) | ||
| F value | F1.6 (Wide) to F4.7 (Tele) | ||
| Control Mechanics | Zoom motor | Stepping motor | |
| Focus motor | Stepping motor | ||
| Iris | Auto / Manual | ||
| White Balance | Same | ||
| Output Mode | HD | 1080p/59.94, 1080p/50,1080i/59.94, 1080i/50, 1080p/29.97, 1080p/25, 720p/59.94, 720p/50, 720p/29.97, 720p/25 | |
| I/O Pins | Image Signal I/O | HD-SDI | |
| Control Signal I/O | VISCA Protocol | ||
| Power, others | Power supply | DC 12.0 [V] | |
| Power Consumption | 3.2W (Typ. at draft mode, Lens actuator not included) | ||
| Storage Temperature | -20ºC~60ºC / 20[%] to 95 [%] | ||
| Operating Temperature | -5ºC~60ºC / 20[%] to 80 [%] | ||
| Dimensions | W= 70mm H=78mm L=133.5mm | ||
| Accessories Included | 1/4-20 | ||
